25kg/50kg Cat Litter Pet Sands Packing Machine
Home > Products > Production Line of Bedding > 25kg/50kg Cat Litter Pet Sands Packing Machine

25kg/50kg Cat Litter Pet Sands Packing Machine


  • 25kg/50kg Cat Litter Pet Sands Packing Machine
  • 25kg/50kg Cat Litter Pet Sands Packing Machine
  • 25kg/50kg Cat Litter Pet Sands Packing Machine

25kg/50kg Cat Litter Pet Sands Packing Machine

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean
    Place of Origin: China
    Port: SHANGHAI PORT

Product Description

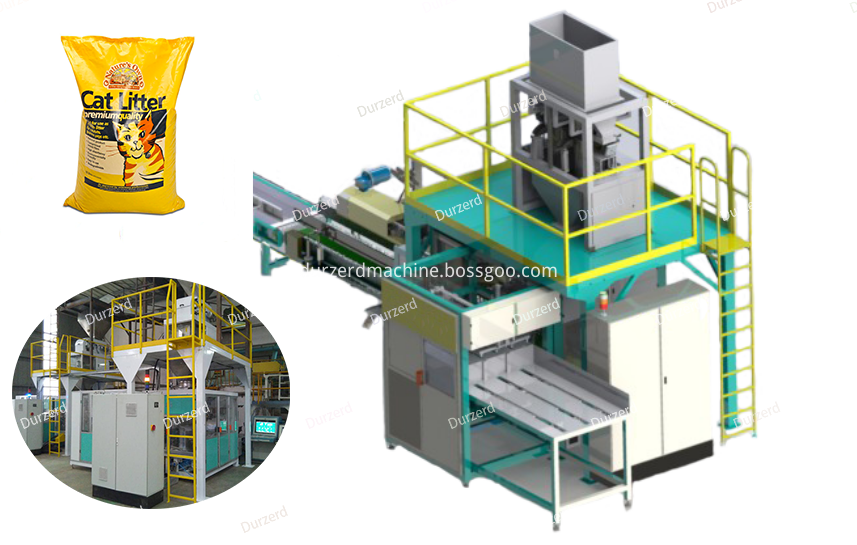

Open mouth auto bagging machine for 25~50kg granule

This cat litter packing machine applicable rationing weighing and packing of granules and pellet discharged forcefully by the feed gearing. Such as cat litter, cat sand, kitty litter, cat bedding, clay cat litter, zeolite cat litter, wood pellet, plastic granules, etc.

Working processing from 25kg-50kg raw material supplying, auto weighing filling, auto bag feeding, auto open mouth bagging, auto bag moving, auto bag sealing, finsihed products output. If want to fully automate the production line, Robot Palletizer Line is usually added to realize automatic palletizing and transportation.

Brief Introduction:

1. The open mouth bagging machine is widely applied in food industry(rice, beans,sugar,corns ), chemical industry, feed, grain, seed ,salt, sugar, pet foods and other Industries with paper bag, palstic bag, etc.

2. Automatic supplying bags can be high-speed and continuous.

3. Every execution unit includes control & safety device to make the equipment run automatically and continuously.

4. The motor manufactured by SEW make the equipment more efficient.

5. This machine has functions such as automatic weighing, bag feeding, automatic filling, automatic bag delivery, and automatic sealing. It can be linked with equipment to process all kinds of granular and flake materials to realize unmanned production of large packaging.

The whole system consists of the following parts:

1.High speed servo control weighing machine

2.Auto bag feeding and packing machine with electric control box

3.Automatic Stitching /sewing/heating/paper taping sealing machine(Stitching Machine with NEWLONG stitching head)

4.Plat form(painted steel or stainless steel 304)

Features:

1. The open mouth bagging machine filling weight range from 10-25kg or 25-50kg for each bag, and can supply about 550-650 bags/h or high speed model 800-1000bags/h.

2. Automatic supplying bags can be high-speed and continuous.

3. Every execution unit includes control & safety device to make the equipment run automatically and continuously.

4. The motor manufactured by SEW make the equipment more efficient.

APPLICATION:

The Big Bag Packing Machine is widely applied in chemical industry, feed, grain, seed, salt, sugar, pet foods and other Industries with paper bag, plastic bag, etc. So this machine can also be designed as a salt bagging machine and sugar bagging machine, etc.

Work Flow Chart:

Bag Supplying MachineTake Empty BagOpen Empty BagBag Clamping and Feeding MechanismBag Bottom Flapping MechanismBag Horizontal Moving & Pocket Mouth Clamping MechanismStanding Bag ConveyorAuto bag folding and sewingFinished bag

Cat Litter Packaging Detailed description:

cat litter packaging

Technical Parameters

Model

ZDK25

ZDK50

Maximum speed

550-650 bags/h or high speed model 800-1000bags/h

Bag size

L*W:(630-830)*(350-450)mm

L*W:(800-1100)*(450-650)mm

Weighing range

10-25kg/bag

25-50kg/bag

Bag storage capacity

100-200

Control method

PLC

Power supply

three-phase four (five) wire system, 380V, 50HZ, 7KW

Air source used

clean, dry, oil-free and dust-free, 0.5-0.7MPa, 8000NL/Min

Sealing method

heat sealing inner bag + seam outer bag

Packing bag type

Premade open-mouth bag

Packing bag material

paper bag, polyethylene coated paper bag, PE inner film paper bag, aluminum foil paper bag, PE bag, polypropylene fiber bag,Coated fiber bag, PE inner film fiber bag

Bag specifications

non-standard

Packing bag shape

flat bag, flat bottom bag

Details pictures:

cat litter filler
